Especificaciones tecnicas

Robust mmWave Distance Measurement Sensor for Industrial Applications

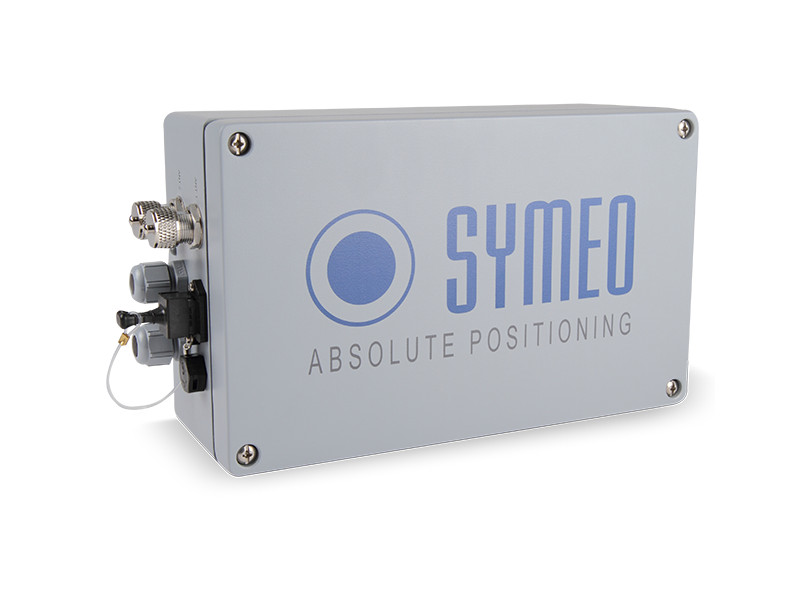

The LPR®-1DHP-290 radar system performs 1D distance measurements for short, medium and long ranges with highest accuracy. By performing primary, secondary and diversity radar measurements, the LPR®-1DHP-290 can detect the position and speed – for example of cranes and railbound transport systems – in real-time and make the data available via the device interfaces.

The sensors are simple to install and easy to put into operation with the aid of a
web interface. A directional antenna is integrated into the robust housing.
The LPR®-1DHP-290 radar system is a successor to the LPR®-1DHP and features an even higher accuracy and measurement rate in a more compact design. The device features the latest mmWave technology,
allowing it to achieve highly-precise measurements with mm accuracy.

The sensor can be optimally confi gured for the required accuracy and range
by selecting individual measurement modes. Even under the harshest conditions and weather environments such as rain, fog, snow, dust, smoke or vibrations, the maintenance- and wear-and-tear-free wireless technology operates reliably and with a high degree of availability – indoors and outdoors.


Radar measuring mode Primary, secondary, diversity radar Frequency range 57,0 – 64,0 GHz
Supply voltage 11 – 36 V DC Power consumption 7 W Ambient temperature -40 °C to +70 °C
Protection class housing IP65

Housing dimensions (LxWxH); weight 95 x 110 x 150 mm; 940 g
Interfaces Ethernet (TCP / IP, Profinet)
Response time <11 ms External connector Ethernet (M12), supply voltage (M12) Antenna integrated, beam width = ± 2,5° Compliance CE, FCC, IC (others on request)
